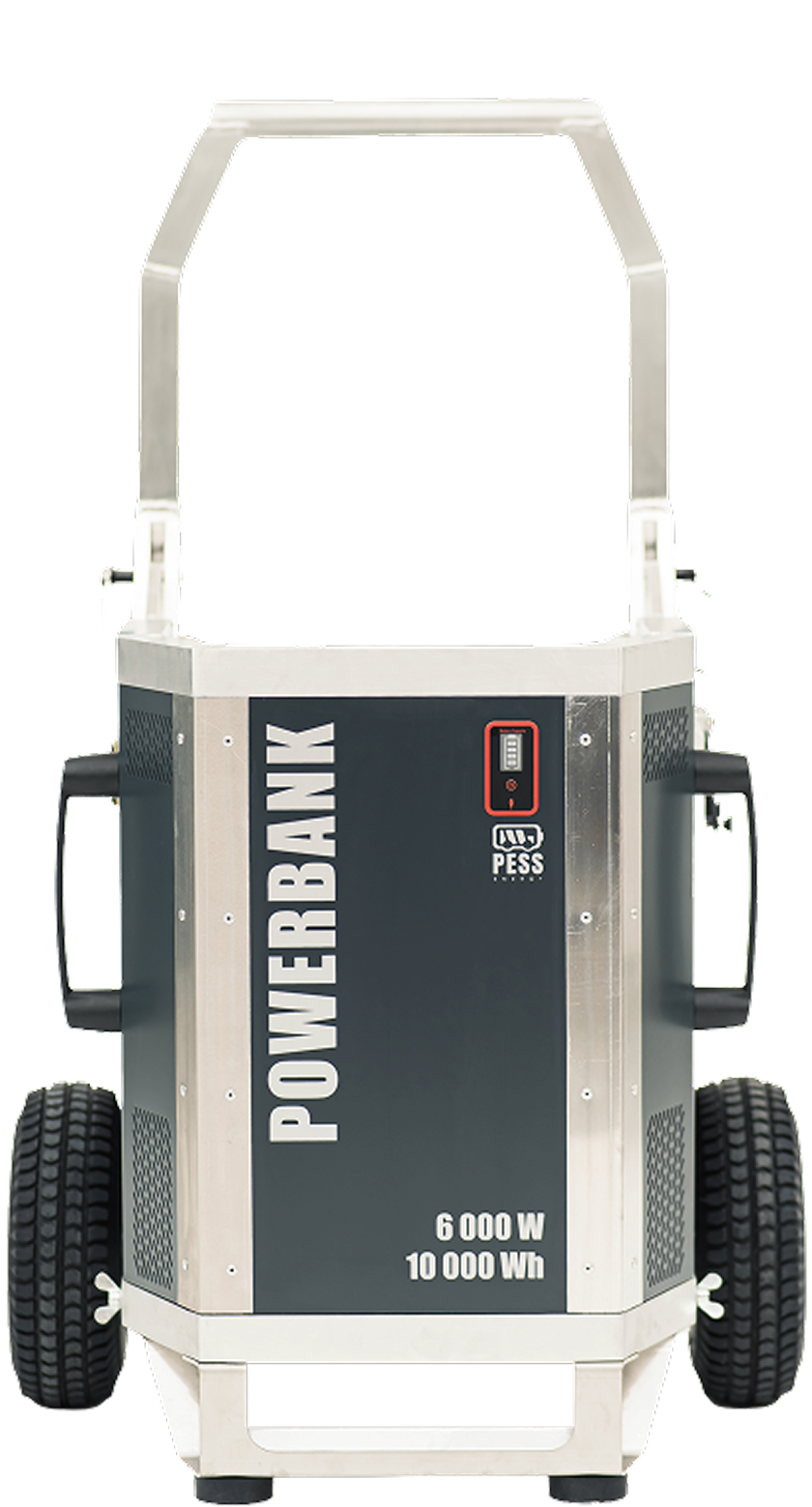

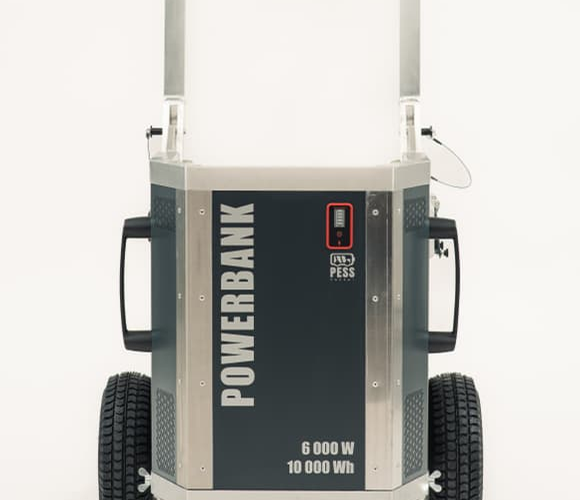

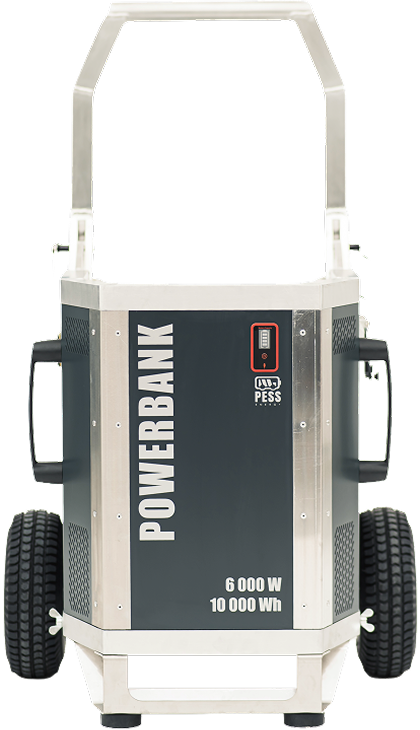

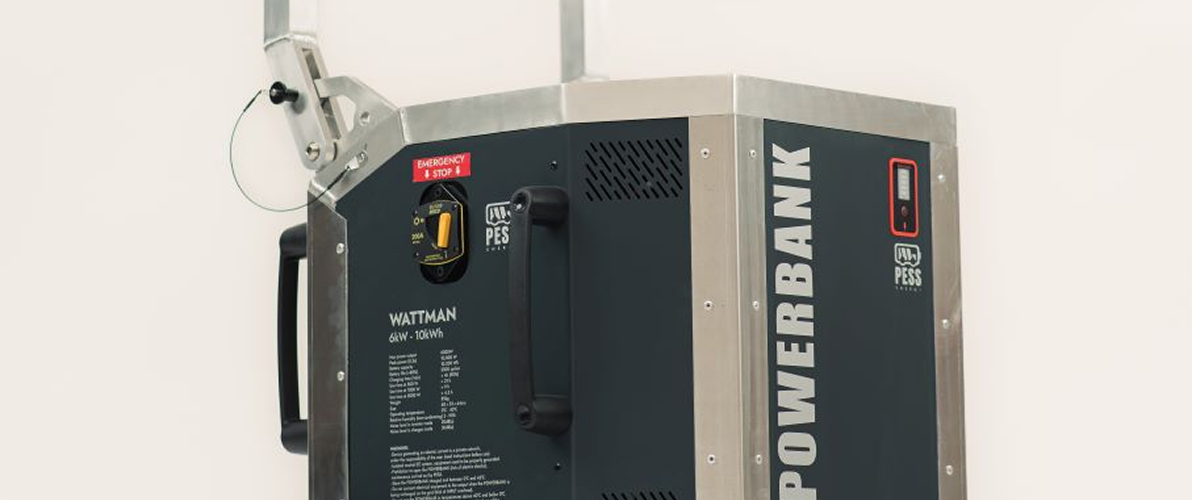

ALL-TERRAIN GENERATOR
Wattman
The robust and powerful all-terrain mobile generator. Silent, self-contained and easily rechargeable for all your projects.
6 000W
Power
10 kWh
Capacity
90 kg
Weight
CAPACITy
10 000 Watt-Hour
Power your entire workday without interruption.
Charging time
Less than 4 hours
Recharge using a standard household outlet.
ENERGY DENSITY
Market No. 1
The best size, weight and battery life ratio.
AUTONOMY and ROBUSTNESS
All terrain

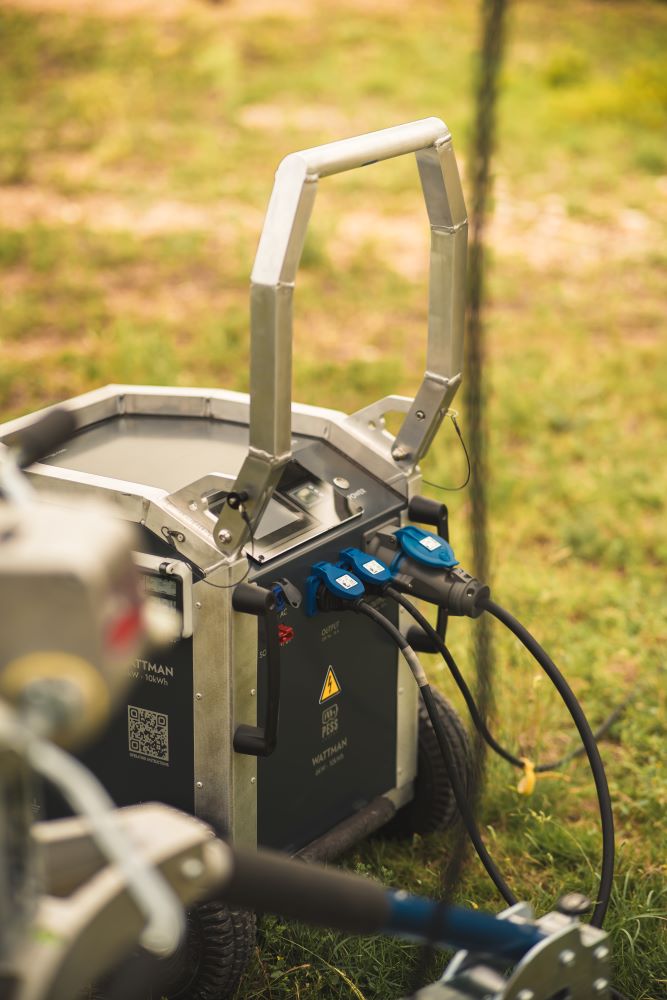

Exceptional autonomy and unbeatable resistance: the Wattman accompanies you on the most demanding construction sites, silently and without emissions.
INTEGRATED SECURITY
IN CHARGE OF YOUR SAFETY
Intelligent battery management system (BMS) for complete protection.
Voltage, temperature and current sensors
Residual current circuit breaker and earthing

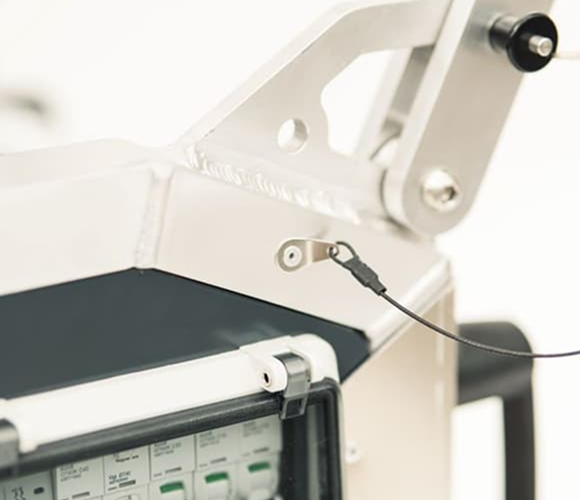

Reinforced, shock-resistant chassis
Automotive Standard Battery Module
Certified by accredited laboratories
HYBRID MODE
SMART HYBRID MANAGEMENT

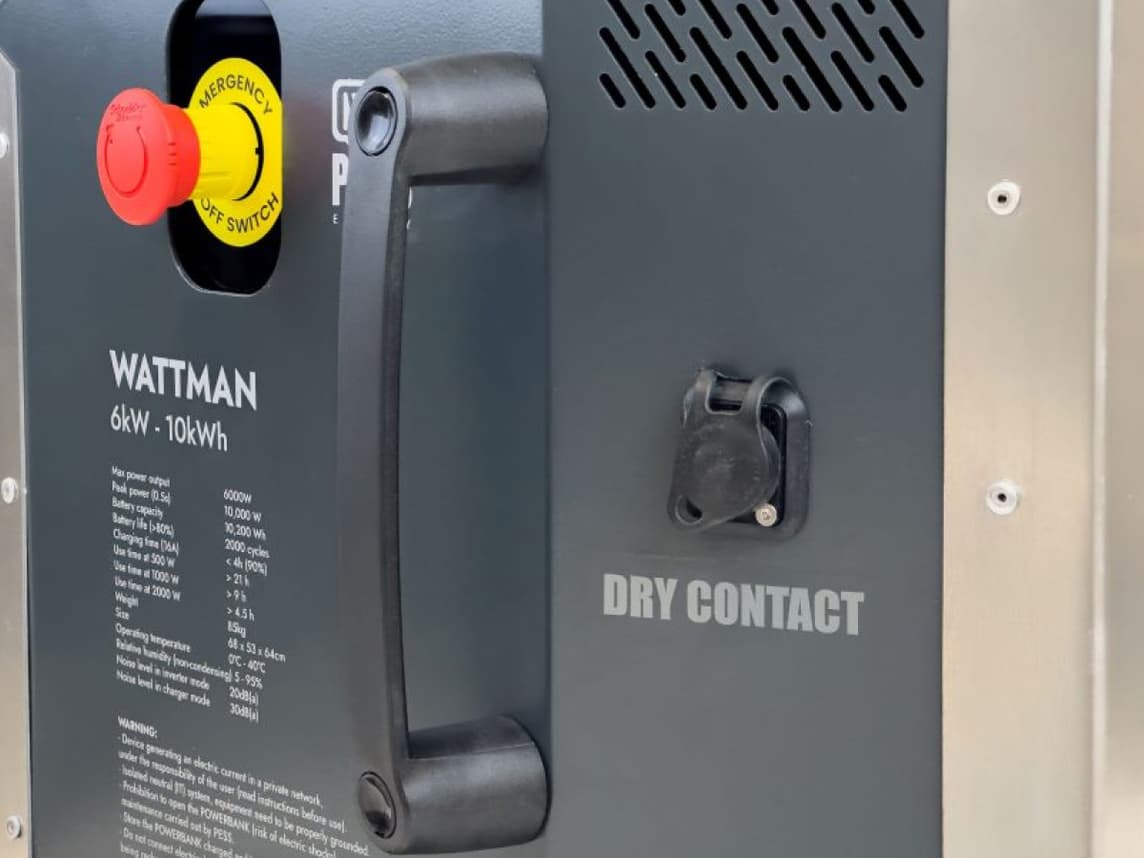

Dry contact output to automatically start an external thermal unit at the defined discharge threshold.
Uninterruptible power supply
Reduced fuel consumption
Thermal performance limited to its best efficiency (60-80%)
SPeCIFICATIONS
TECHNICAL SPECIFICATIONS
ELECTRIC
Rated power
6 000W
Peak power
12 000W
Output voltage
230 VAC – 50Hz

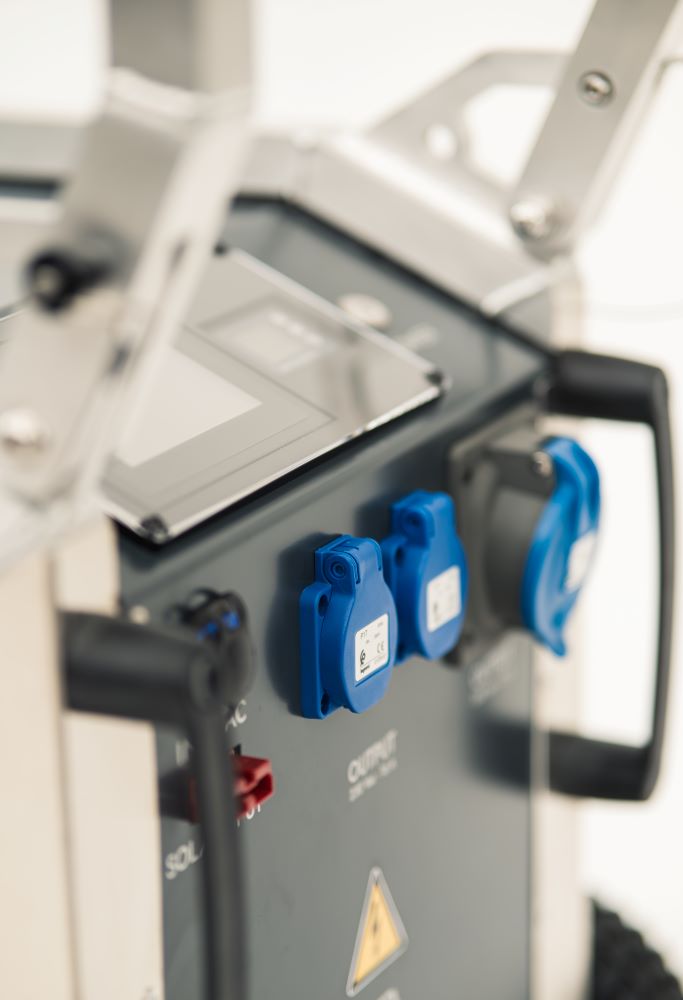

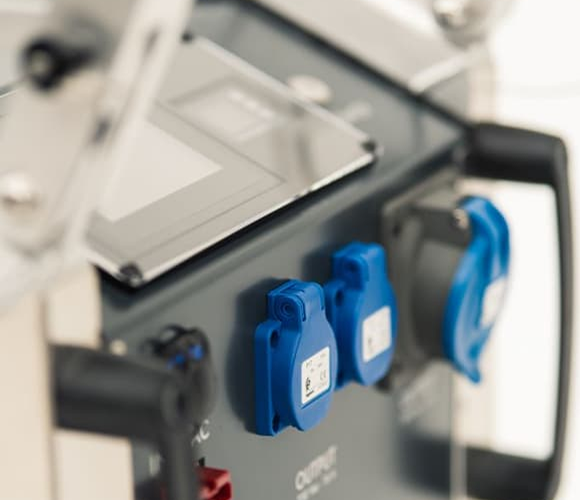

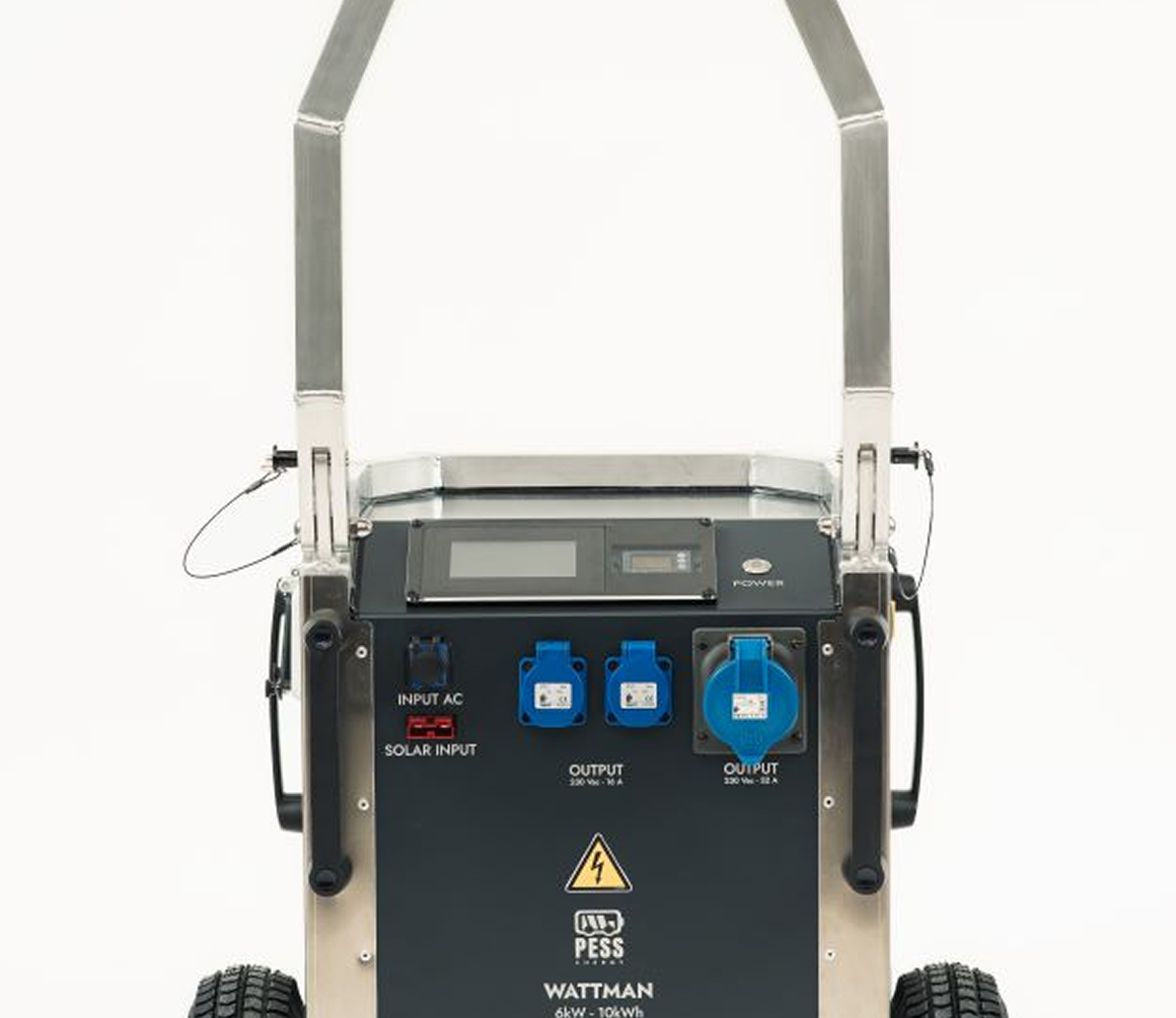

AC Output
2 Type E-16A (2x3500W) 1 P17-32A or
Maréchal single-phase 50A
AC Input
1 Power Twist NCA3 – 20A 1 Anderson 50A
(PV 6000W)
BATTERy
Capacity
10 000Wh
Technology
NMC
Battery life
2 000 cycles
Mains charging
< 4h
Solar charging
120-450 Vdc, 6 000W max

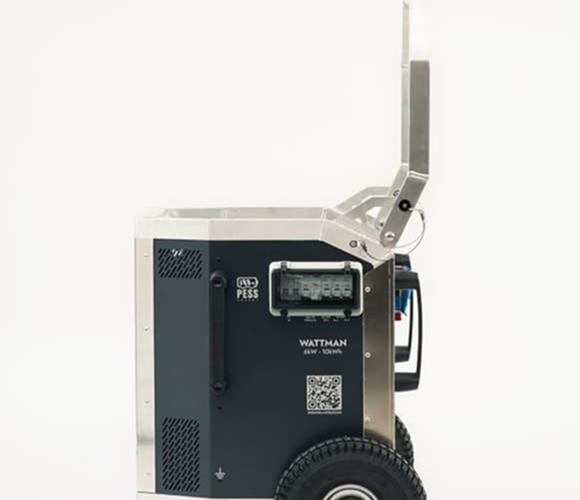

DIMENSIONS
Weight
90 kg
L × l × H
51,2 × 64,5 × 63 cm

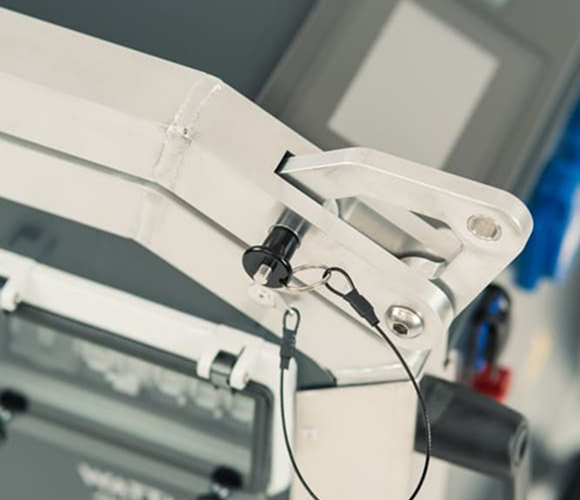

Handle
Off-road
Chassis
Powder-coated reinforced steel
Ground clearance
Raised (sidewalk crossing)

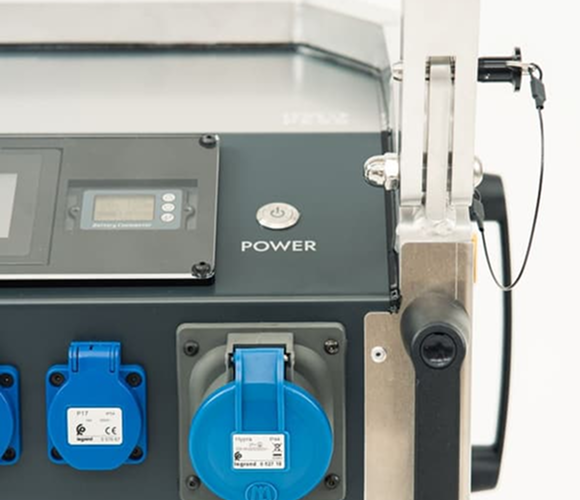

Screen
LCD
charging indicator
LCD band
CERTIFICATIONS
Standards
LV Directive (2014/35/EU) and EMC
(2014/30/EU)
Protection
IP23, IK08
Inverter noise / load
< 20 dB / < 30 dB
Operating temperature / load
-10°C to +50°C / -20°C to +50°C
OPTIONS
Rain cover
Hot swap system “InfiniT” 12,000W
EKLA range of mobile solar panels
Cable 32A (daisy chain 6000W)2 Type E-16A (2x3500W) 1 P17-32A or
Maréchal single-phase 50A
Charging solution for electric vehicles (EV adapter)
