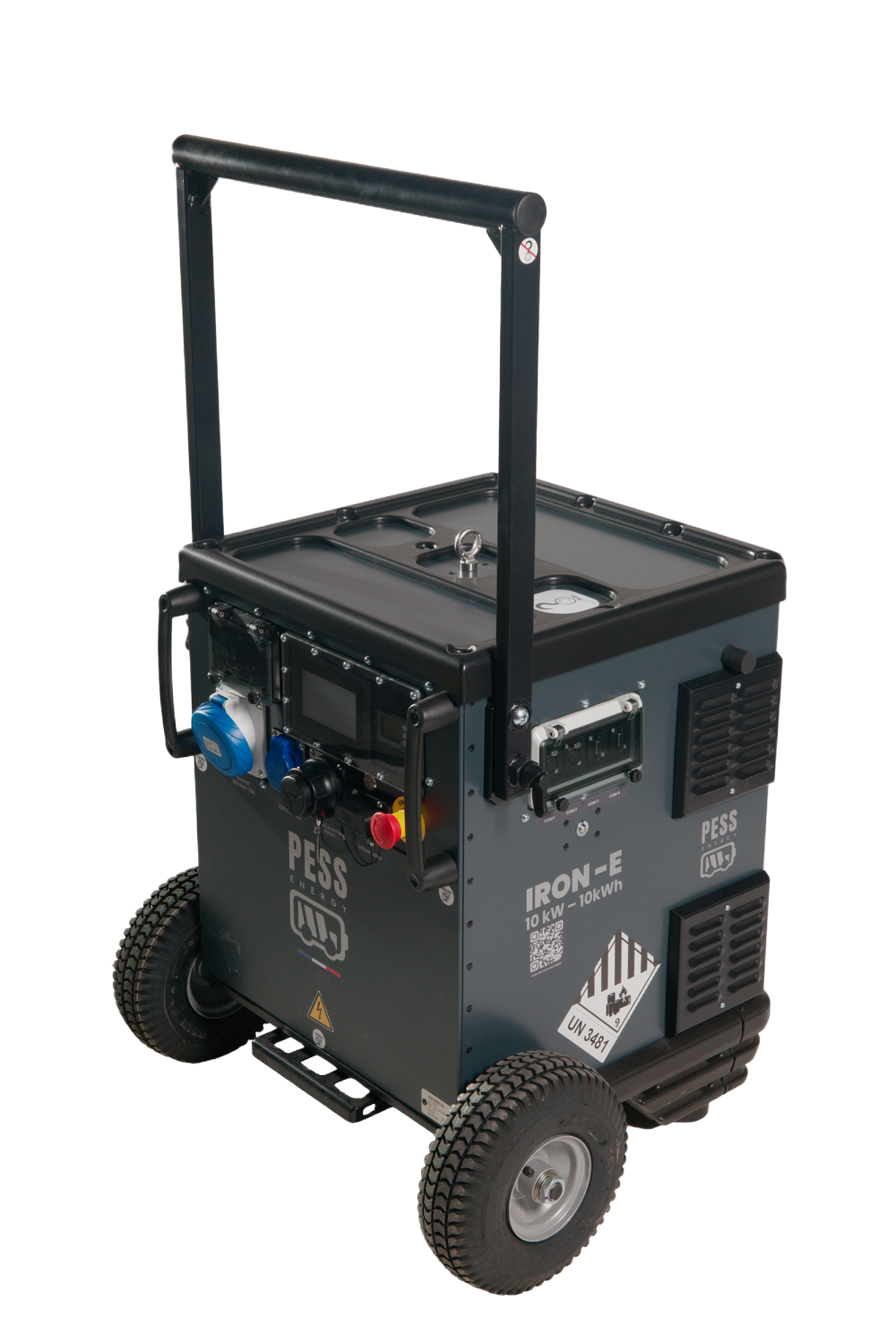

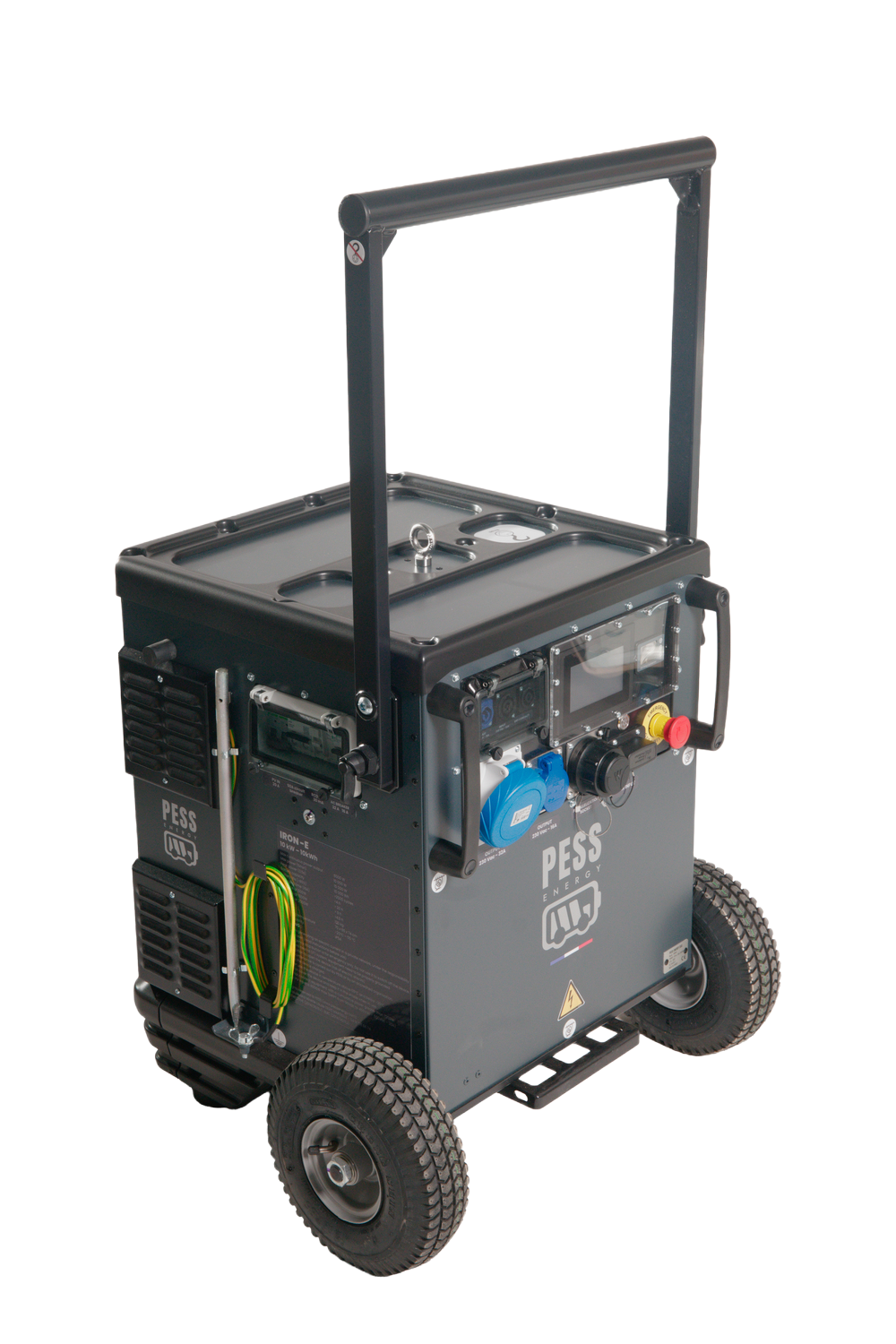

IRON-E
zero emission generator*
adjustable
powerful
stackable
Silent
Autonomous
RobustE
IP54
Your tailor-made energy solution

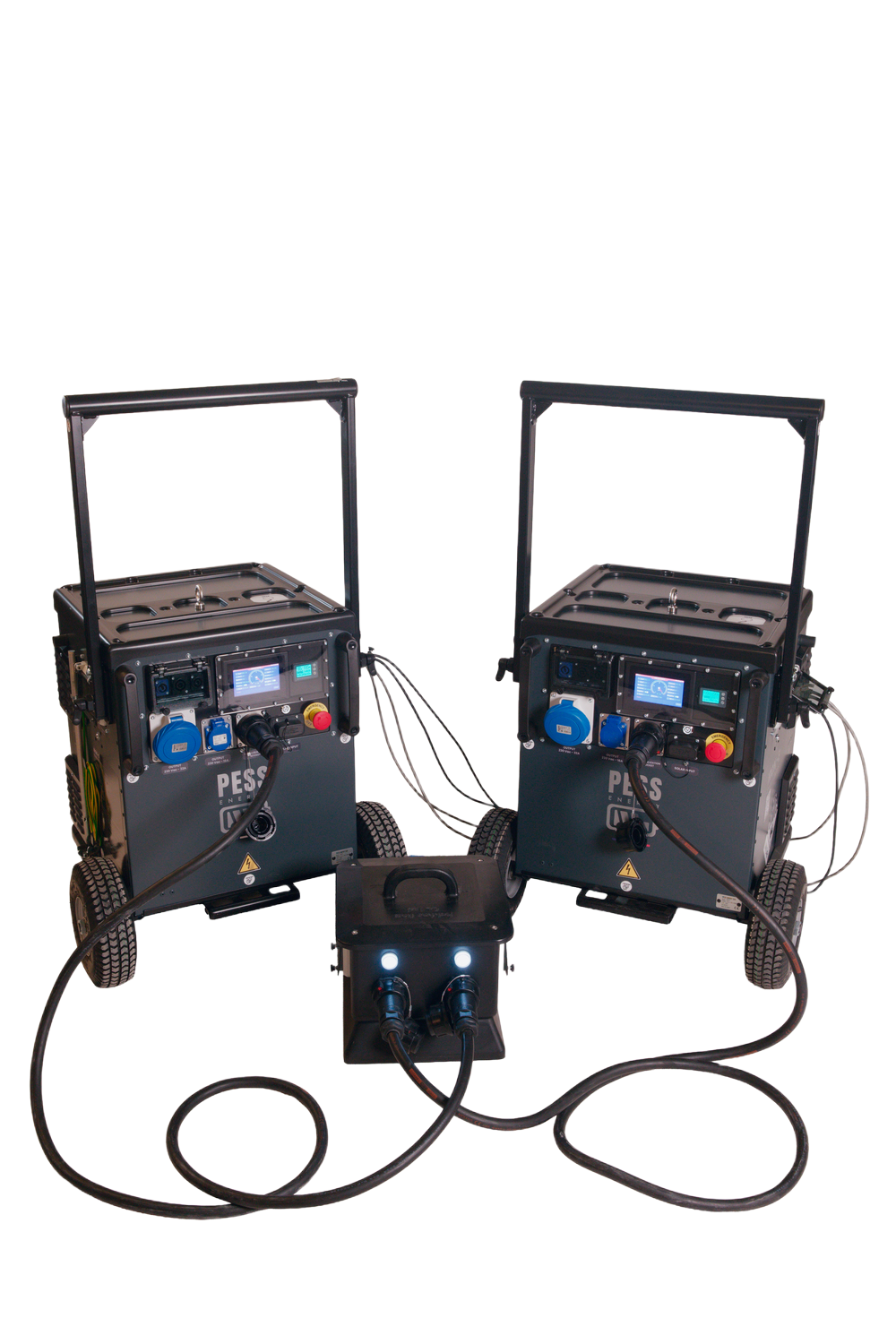

Pair up to 6 IRON-E to reach
50 kW of power &
60 kWh of capacity

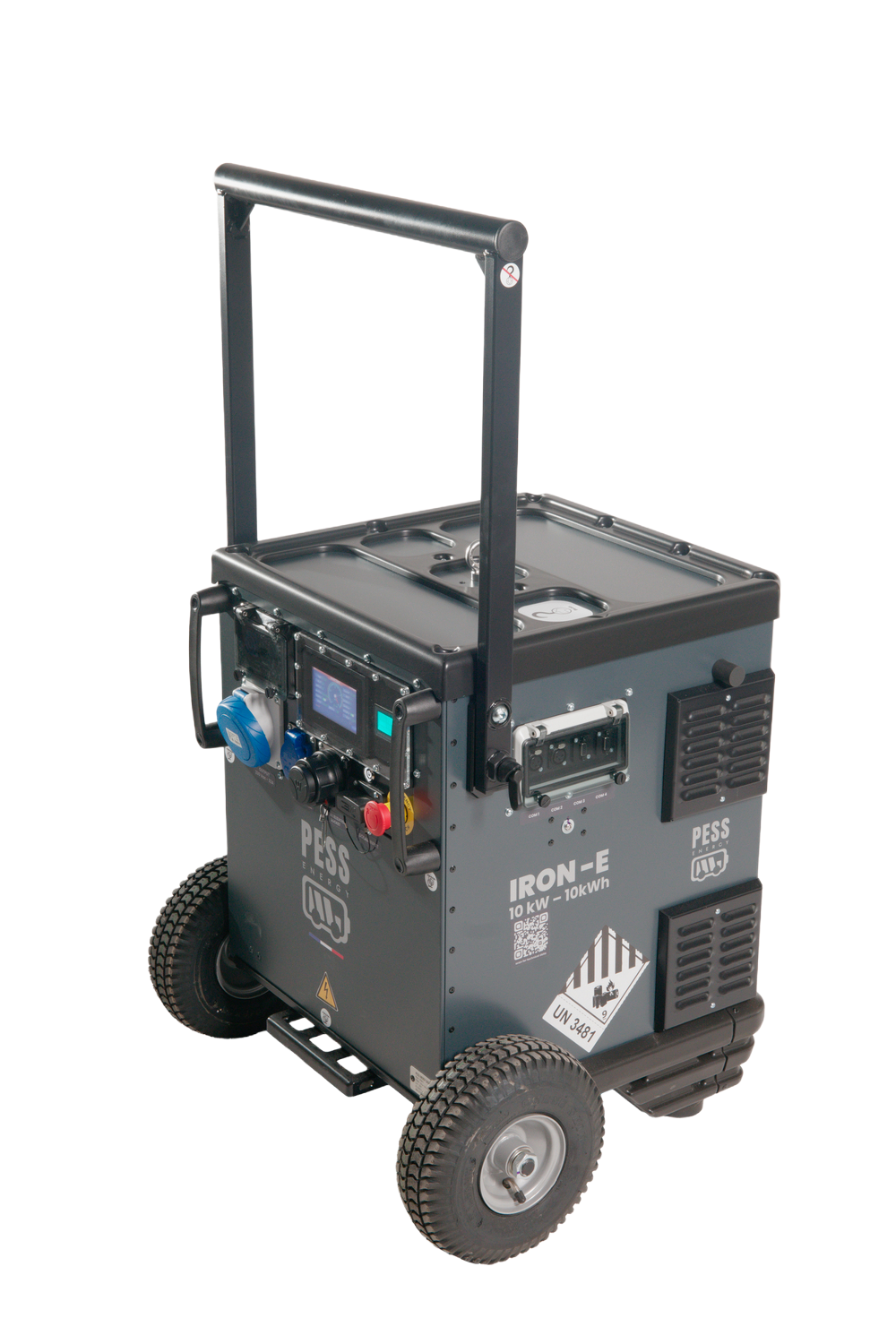

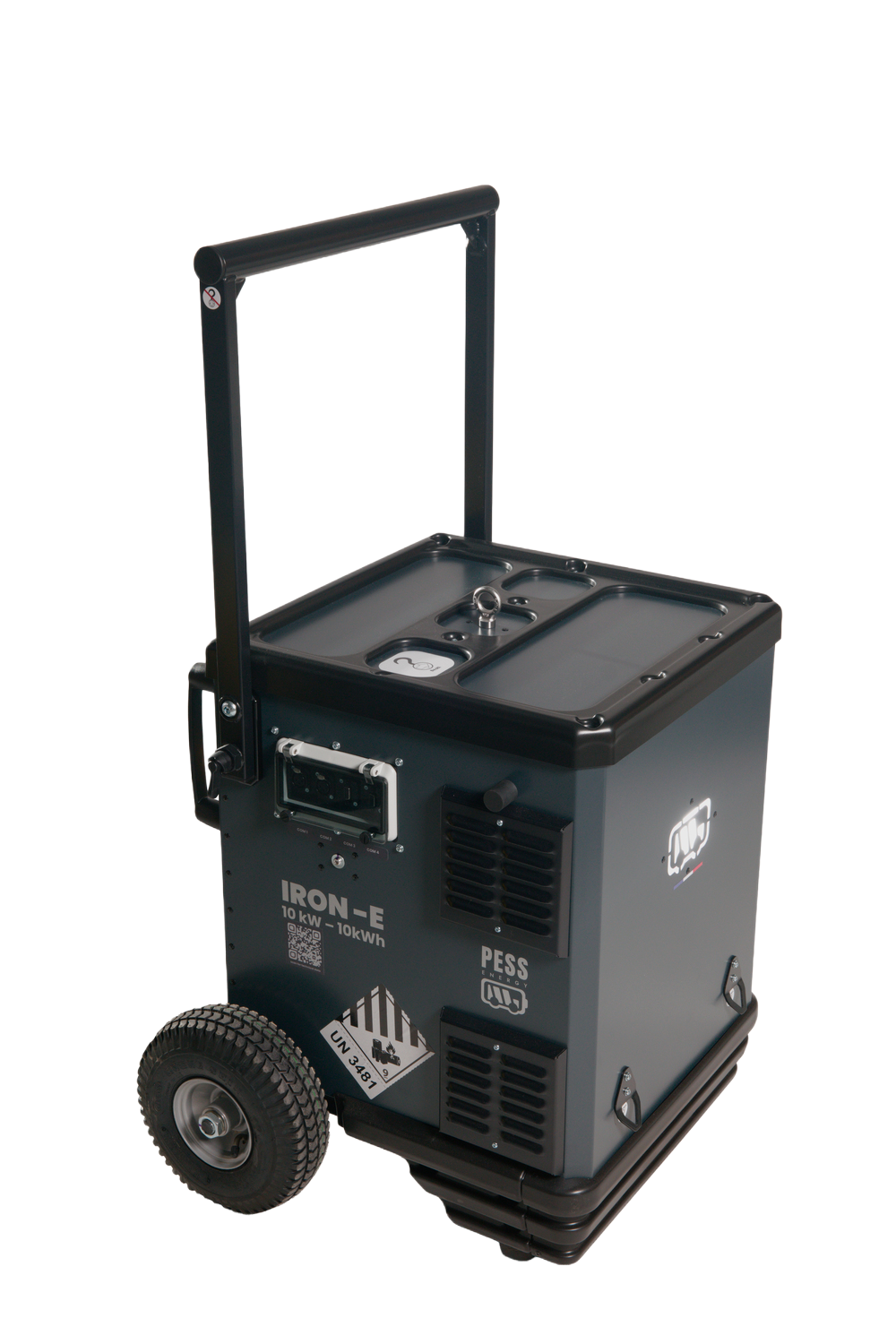

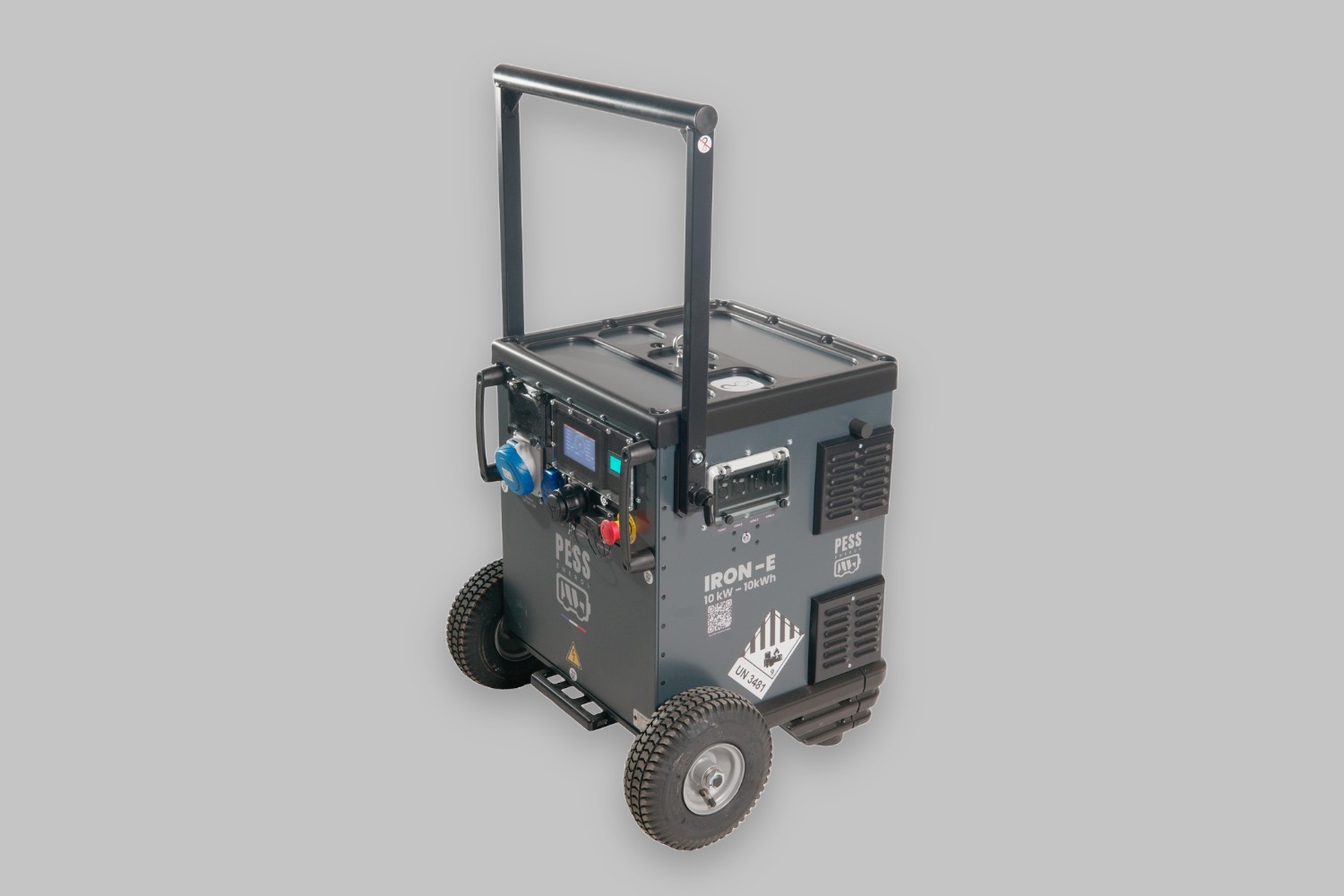

Designed for Challenging Shoots
All of PESS Energy’s expertise and its unique coupling technology are combined in an ultra-robust, all-terrain format.
Modular from 10 to 50 kW, equipped with off-road wheels and an ergonomic design, IRON-E delivers reliable and quiet power to film productions: whether on outdoors, in remote locations, or on difficult terrain.
Resistance
Built to resist the most demanding conditions on set and outdoors.
Scalable

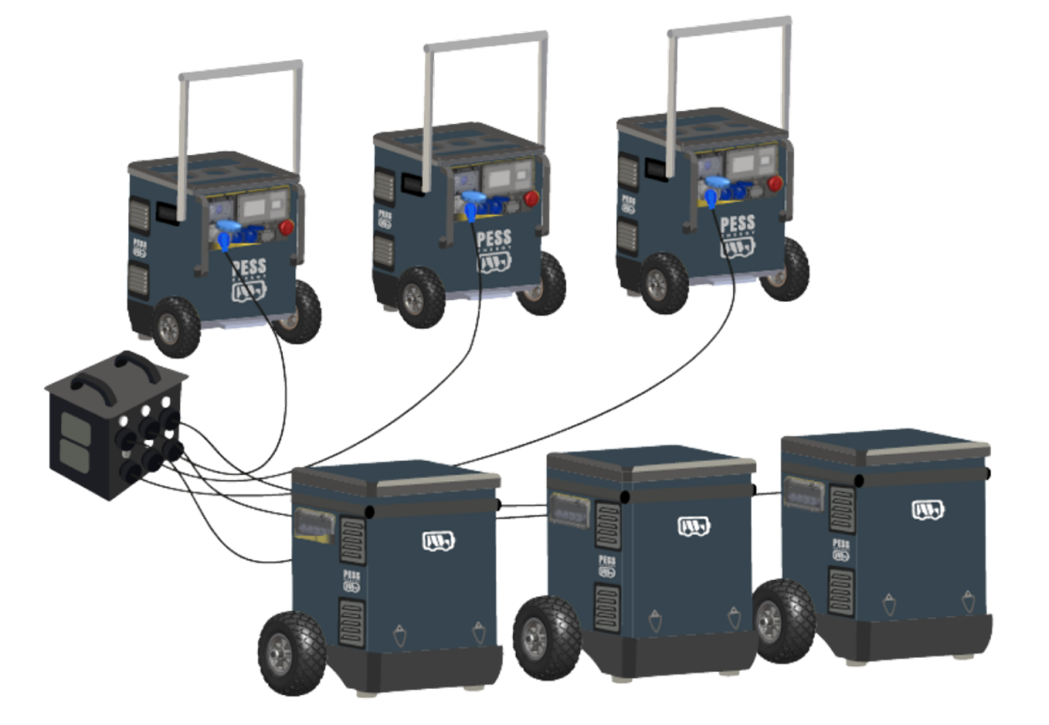

Connect up to 6 IRON-E units in parallel to increase capacity up to 50 kWh and power up to 60 kW.
Mobility

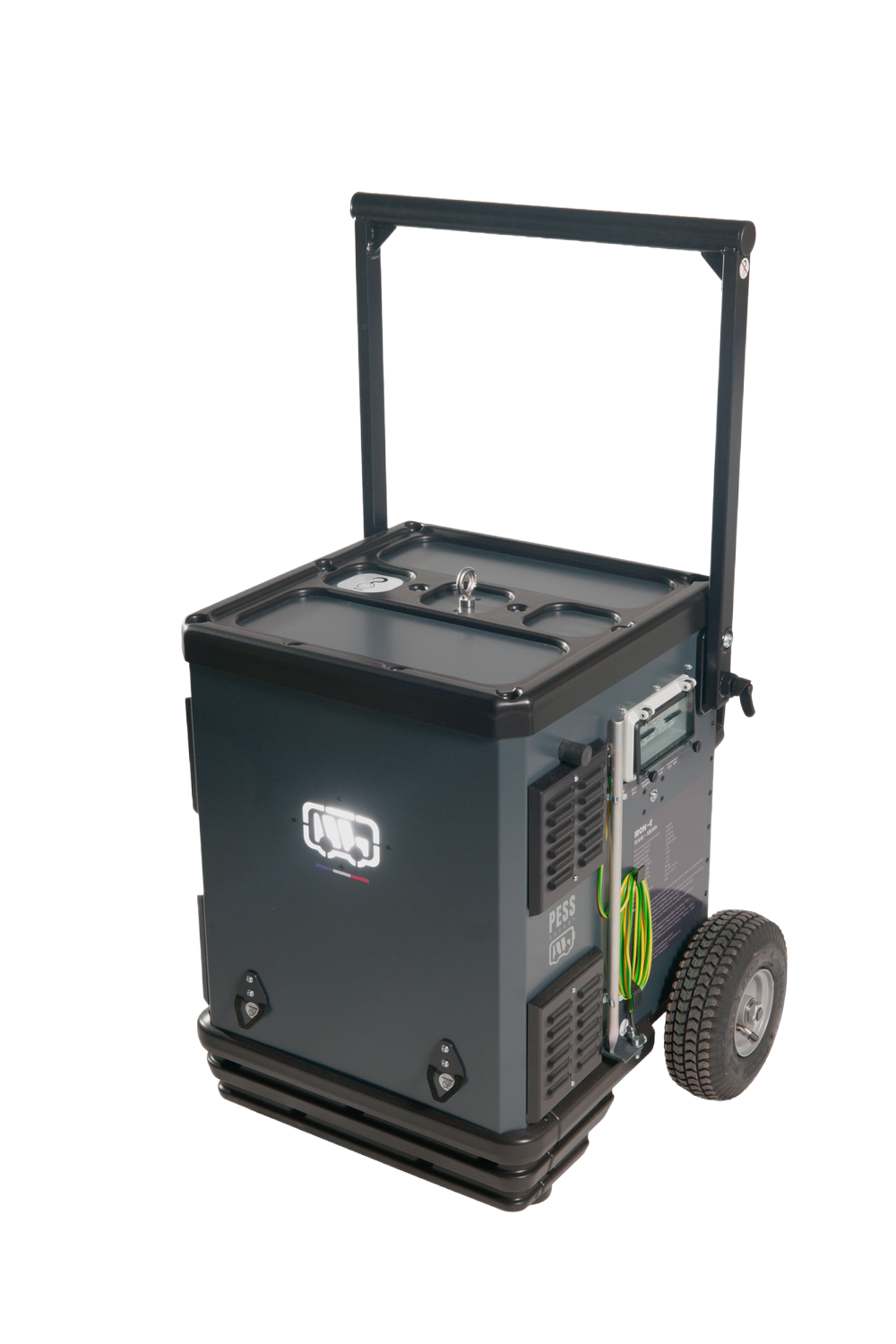

Off-road wheels and ergonomic design: low-centered weight for easy handling.
Power
8kW continuous power – 10kW max power
high power for the most demanding applications.
Produce your own green energy
Combine IRON-E with our mobile solar solution for a total autonomy.
Smart hybrid management

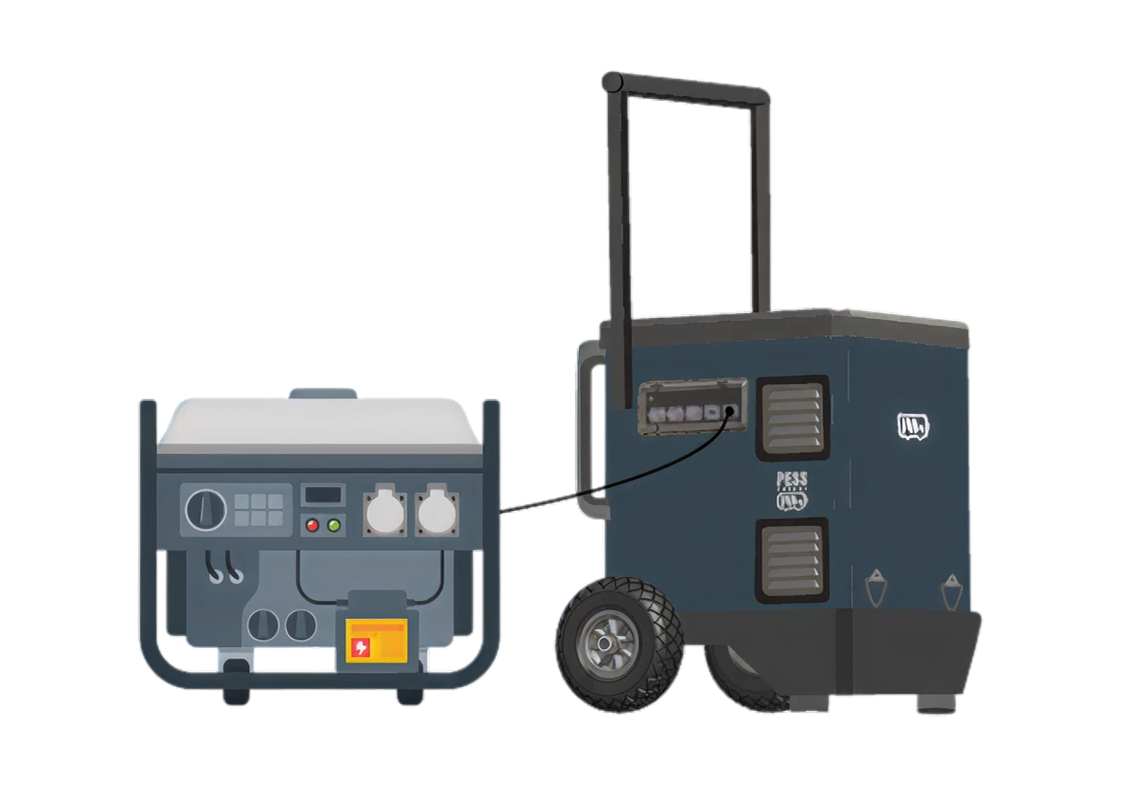

Our battery generators are equipped with a dry contact output, designed to automatically switch on an external thermal generator. When a defined discharge limit is reached, the system sends a start pulse to the thermal generator to ensure continuity of supply and recharge the PESS battery.
This application has several advantages:
- Continuous power supply, without interruption.
- Reduce fuel consumption.
- Thermal power can only be used for limited periods, and at its highest efficiency (between 60 and 80%).
Our products
Wattman
ZERO Emission generator
6000W – 10000WH
Bobine
ZERO Emission generator
4000W –5000WH
Ekla
MObile solar solution
EV-ADAPTER
charging at electric vehicle station
Infini-T
zero power cut box
tECHNICAL DATA
AC production | |
| AC output | 8 000 W |
| max power | 10 000 W |
| battery capacity | 10 000 Wh |
| ac output voltage | 230 VAC ±5% |
| charging time (domestic socket 16 A) | <4h |
| frequency | 50 hz |
| Type of signal | Pure sinus |

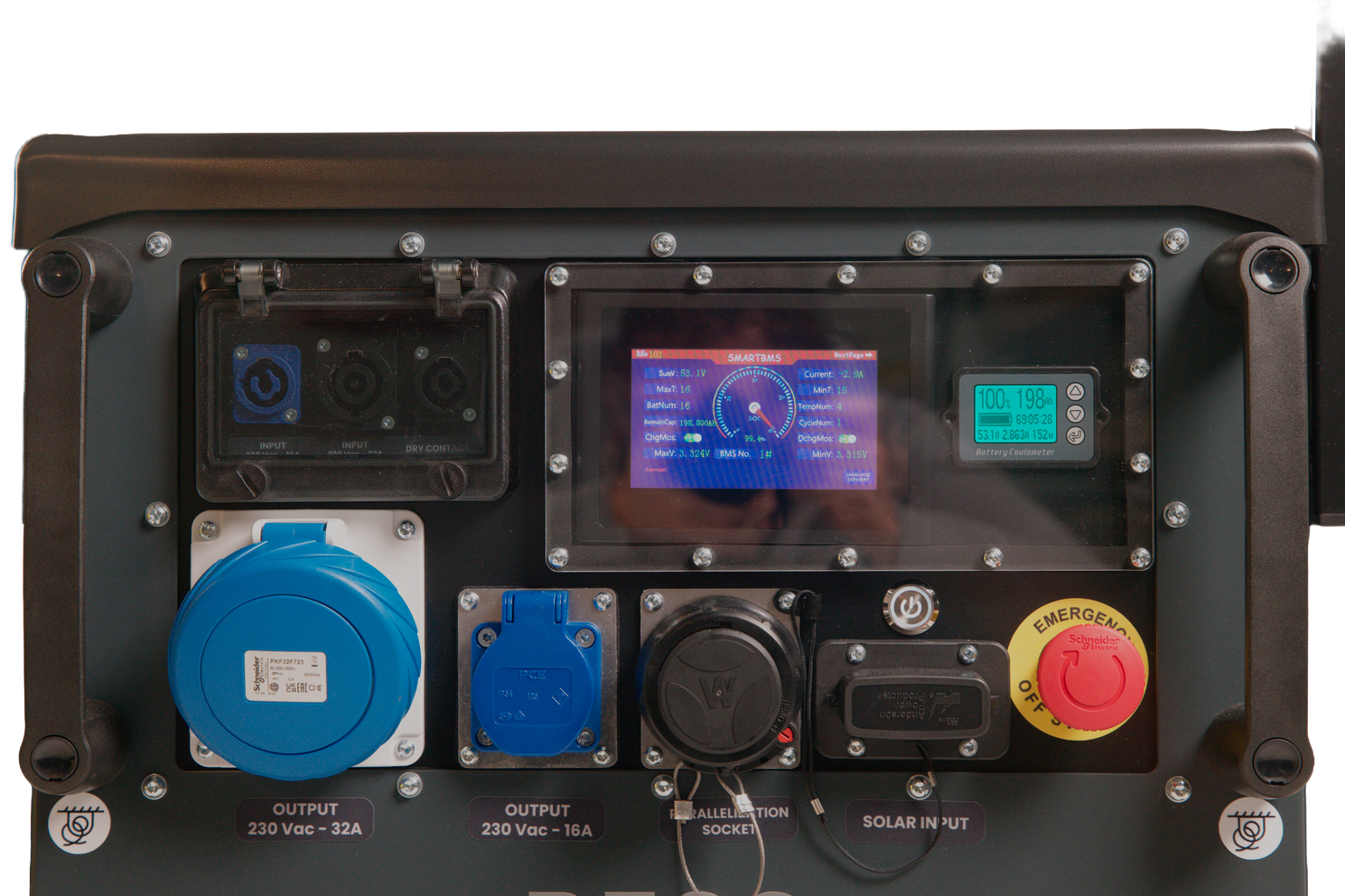

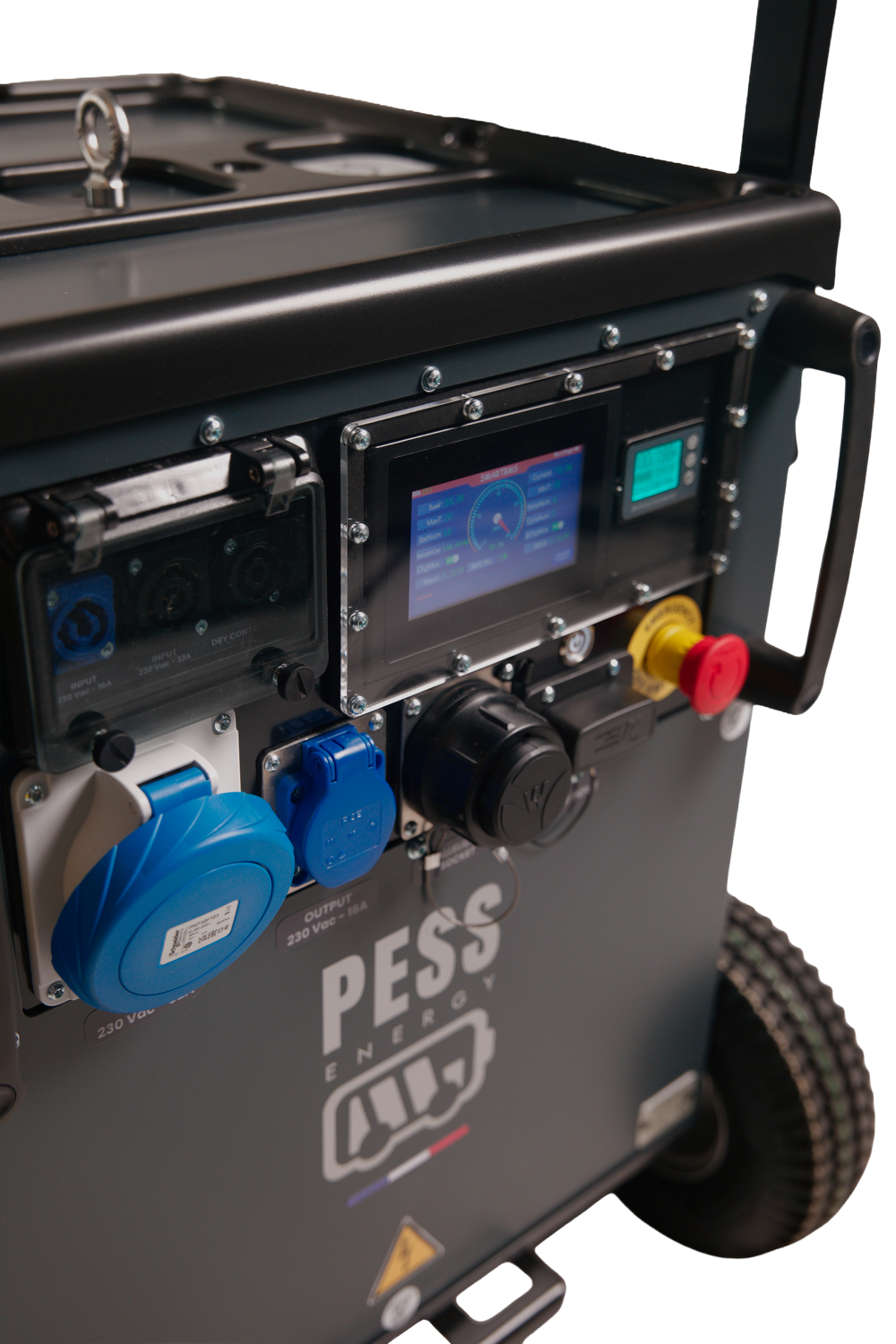

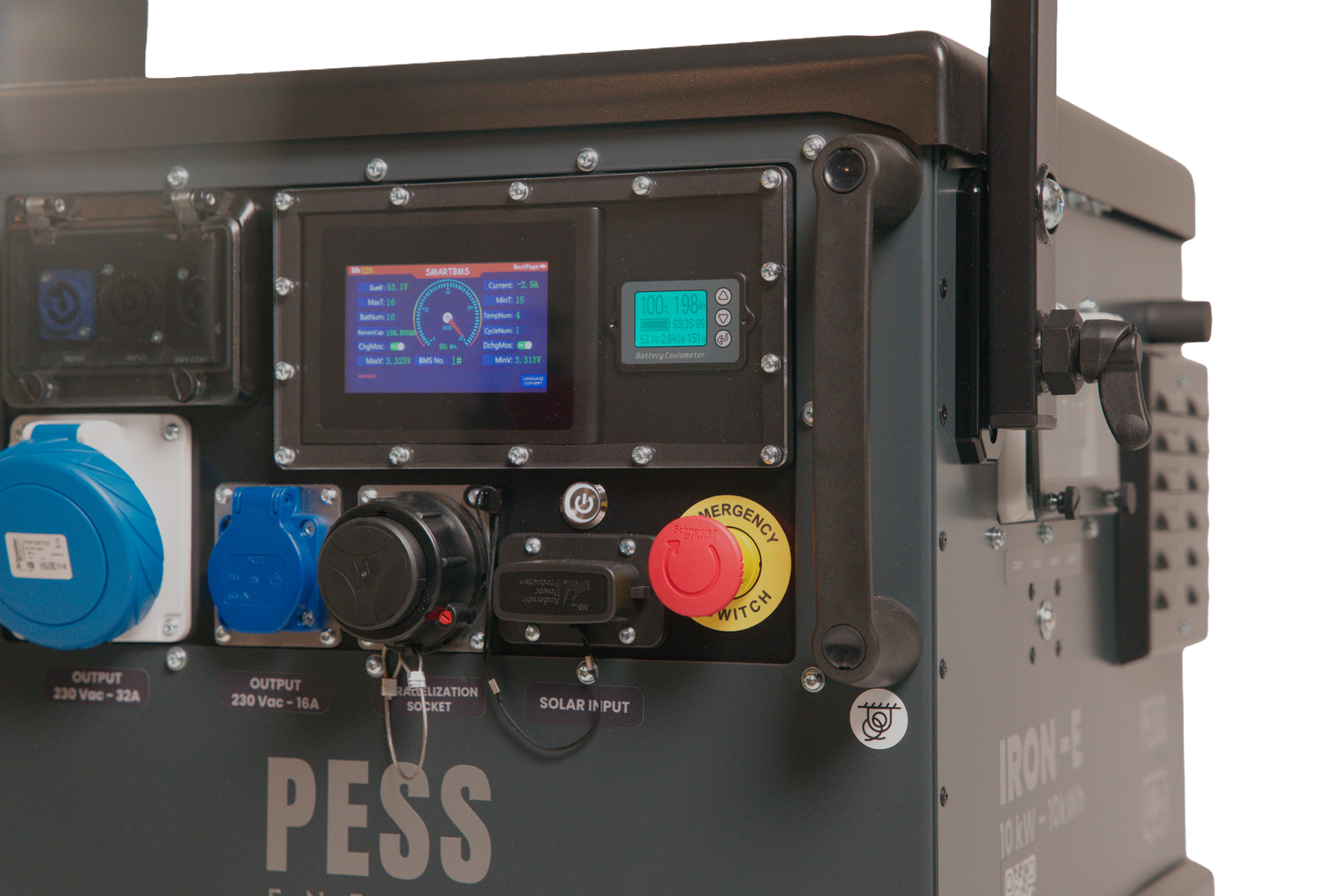

Connections | |
| ac output Connections | 1 mono socket (16A) 1 mono socket (32A) |
| ac intput Connections | 1 input Power Twist 20A – fast charge (3000W) 1 input 32A – slow charge (1000W) |
| DC input Connections (SOLAR) | Anderson 75A |

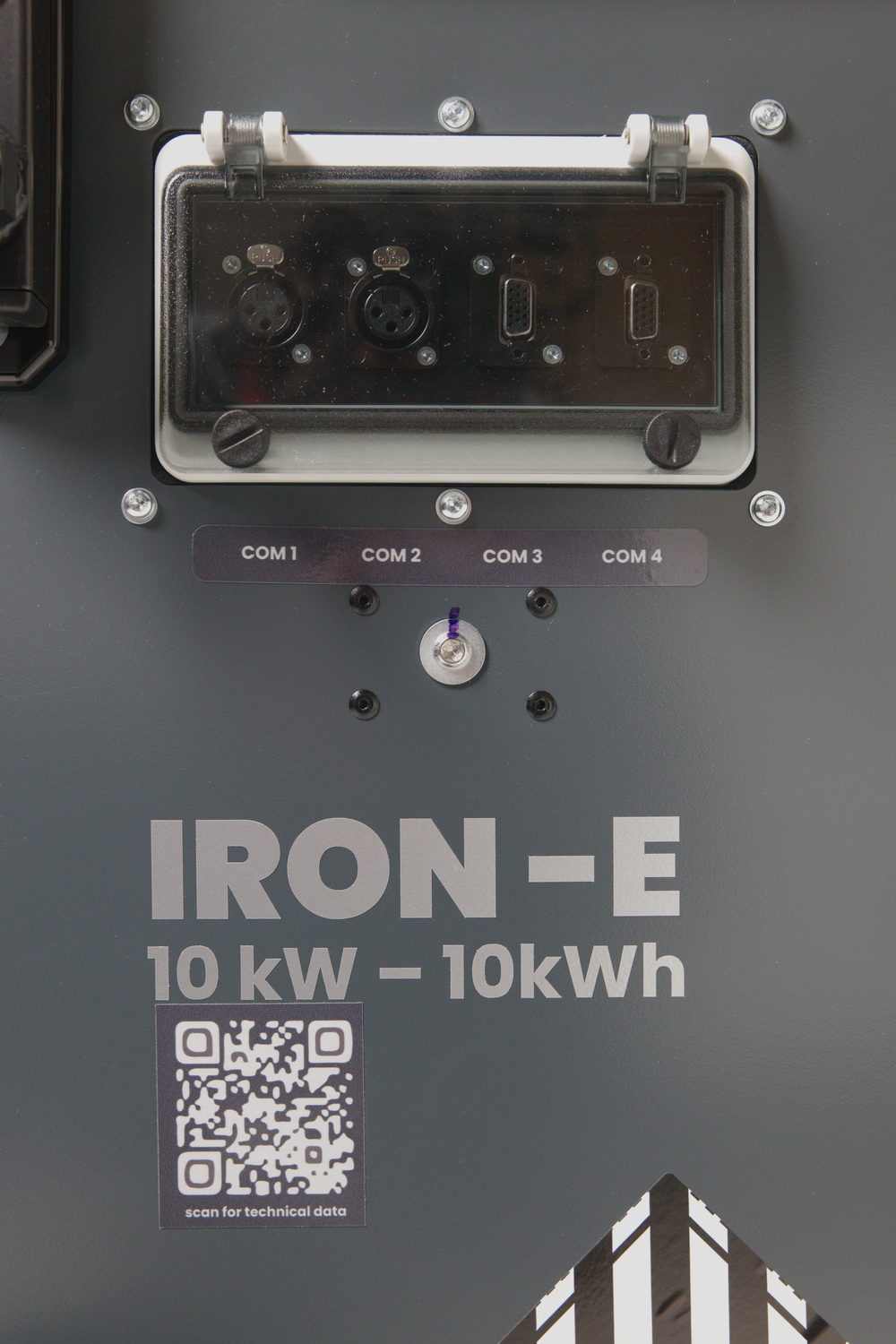

| dry contact | 1 SpeakON 4P socket |
Recharge | |
| AC power supply | 170-280VAC, 50-60 Hz |
| Max charging power AC 16A socket output | 3000 W slow recharge |
| Temps de recharge | <4h |
Protection | |
| AC Protection | Interrupteur différentiel 30mA (63A) |
| AC Circuit breaker | 2x 16A circuit breaker 1x 32A circuit breaker |
| DC emergency stop | 1x punch button |
| DC protection (battery) | Fuse / BMS |
| DC protection (PV) | Fuse / 20A DC circuit breaker |
Solar recharging | |
| Max PV power | 5500 W |
| MPP voltage range | 90 VDC – 450 VDC |
| Maximum Power Point Tracking (MPPT) | Integrated |
| Max current | 20 A |
Temperatures | |
| Recharge temperature | 0 ~ 60 °C |
| Use temperature | -20 ~ 60 °C |
| Storage temperature | 0 ~ 45 °C |
| Long term storage | 0 ~ 35 °C |
Use times | |
| Use time with 300W | >32 h |
| Use time with 500W | 20 h |
| Use time with 1000W | 10 h |
| Use time with 2000W | 5 h |
| Use time with 3000W | >3 h |
| Use time with 4000W | 2h30 |
PHYSIcal | |
| Dimensions | 69 x 56 x 85,5 cm |
| Weight | 120 kg |
ENVIRONNEMENT | |
| Protection class | IP54 |
| Certification | CE, Directive BT (2014/35/UE) et CEM (2014/30/UE) |
