BLAZE
Solar solution for temporary
off-grid projects
Modular, easy-to-install solar power for temporary off-grid projects.
Produce your own green energy anywhere
The Blaze kit
-
1 high-performance 450 Wp solar panel
-
Solar cables
-
Mounting kit with integrated ballast tray
3 kits available:
Blaze 1800: 4 panels (Power 1800 Wp / Voltage 176 Vdc) + 5 ballast trays
Blaze 2700: 6 panels (Power 2700 Wp / Voltage 264 Vdc) + 8 ballast trays
Blaze 4000: 9 panels (Power 4000 Wp / Voltage 396 Vdc) + 11 ballast trays
Quick and easy to install
1 person +4 solar panels +30 minutes
= 14400 Wh/day
robust
Built to withstand outdoor conditions.
Solar Efficiency
Each panel captures the maximum available energy for your project.
modular
Choose from different kits to match your specific needs.
Our products

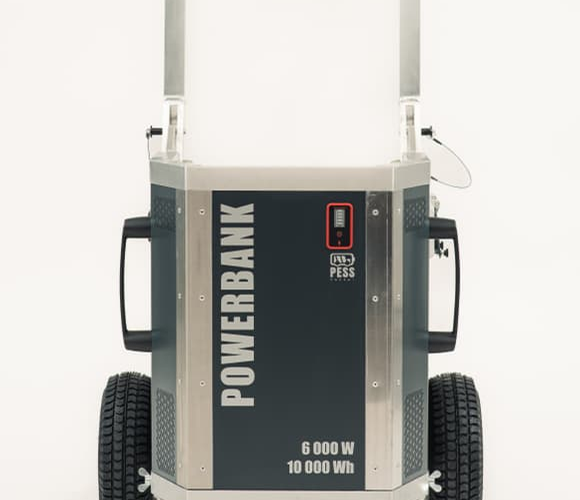

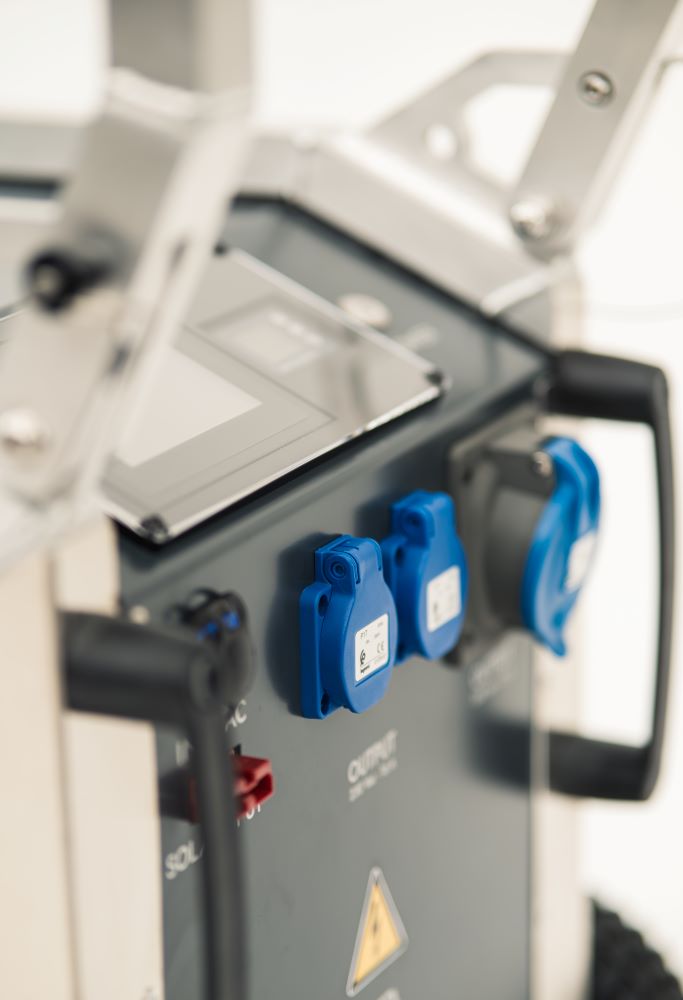

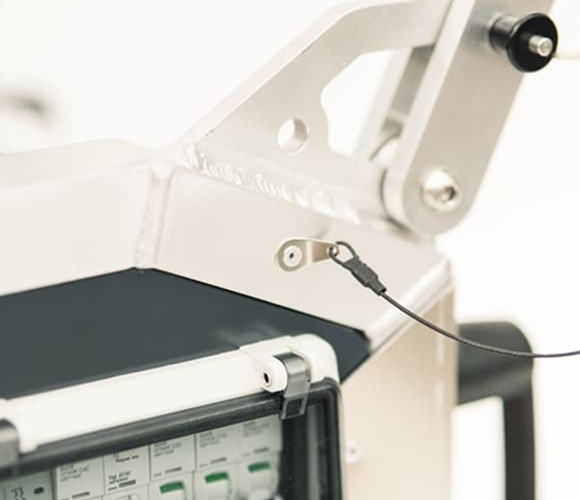

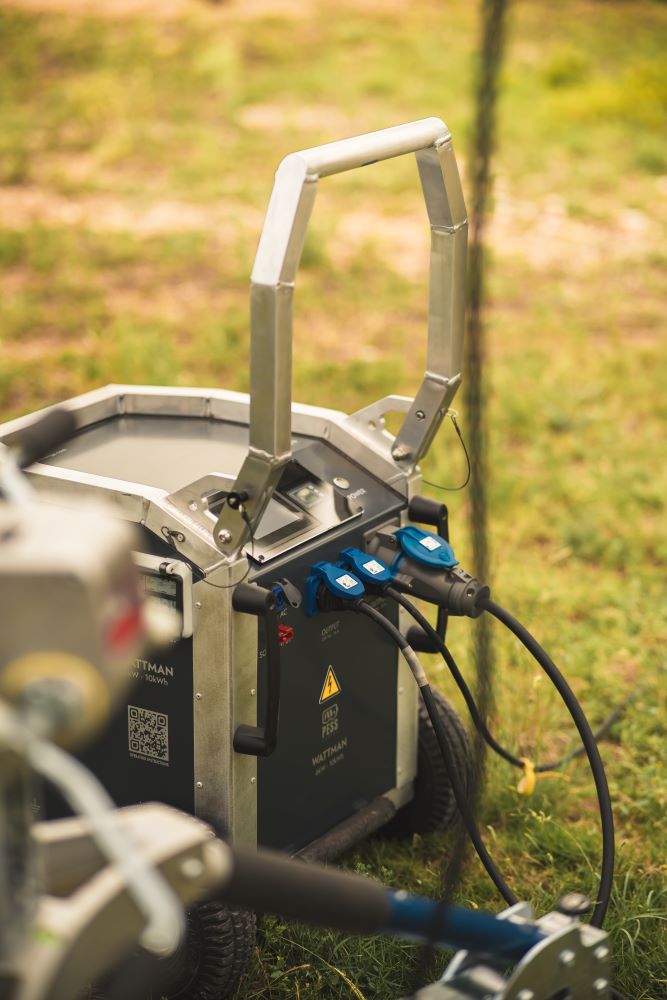

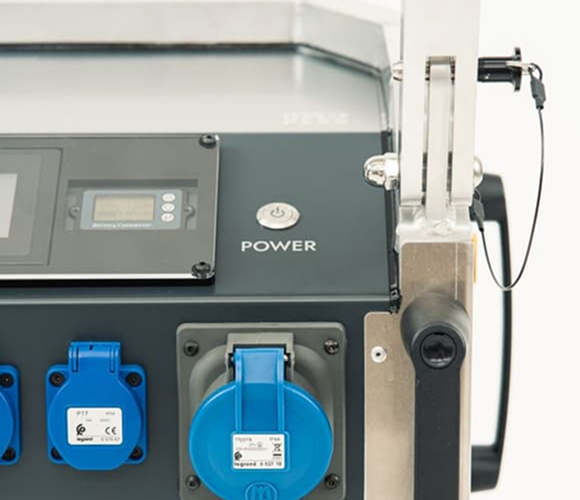

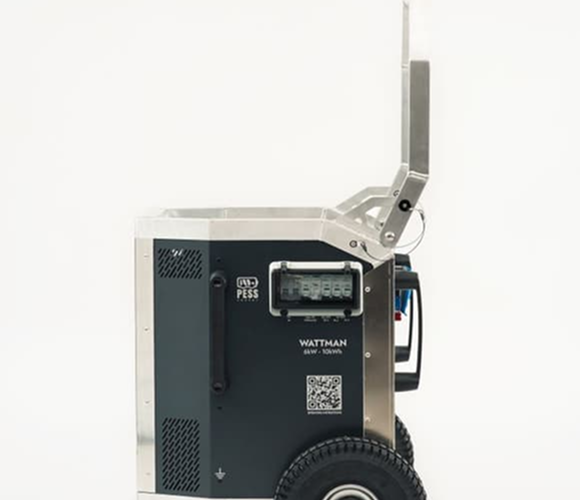

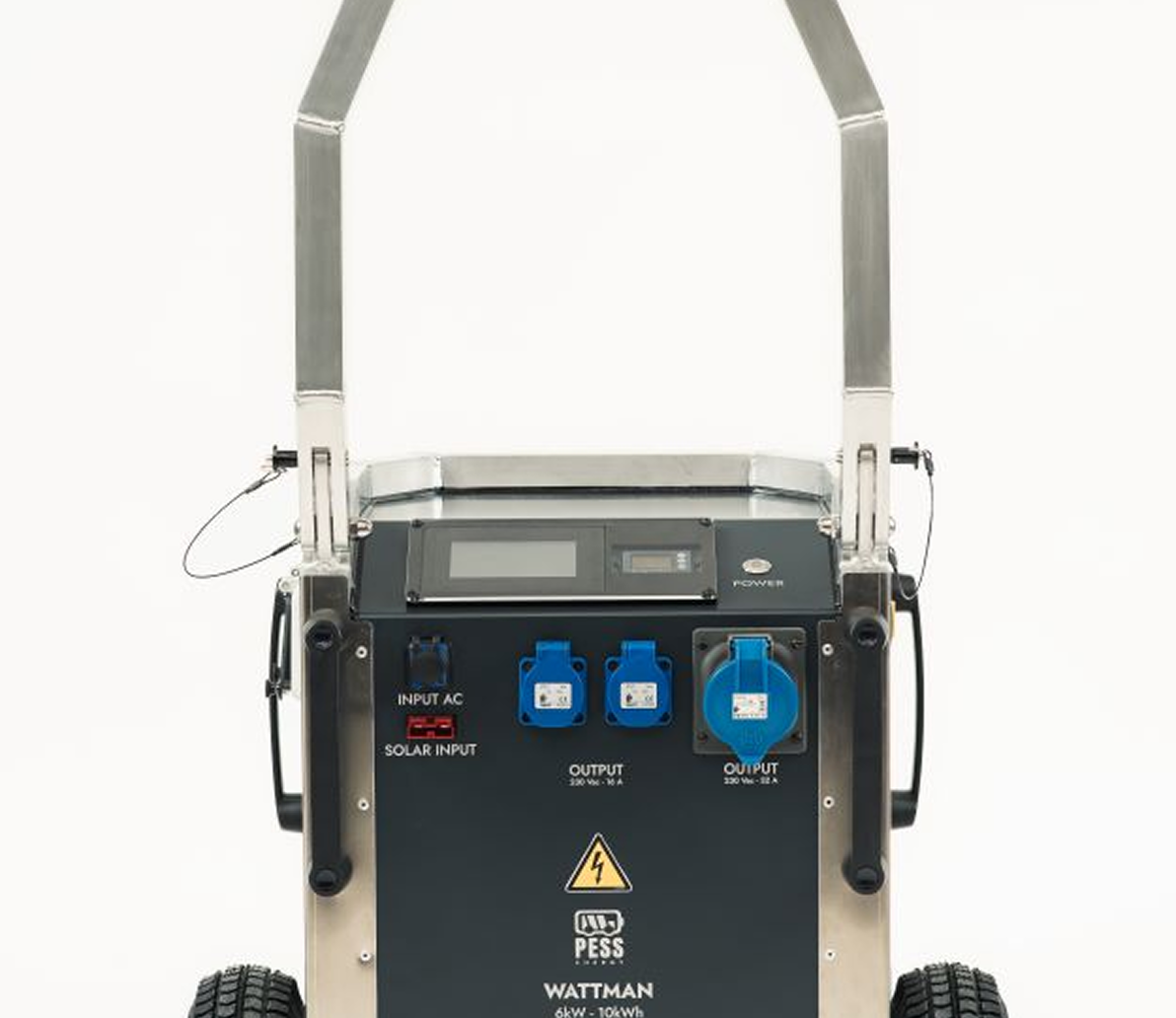

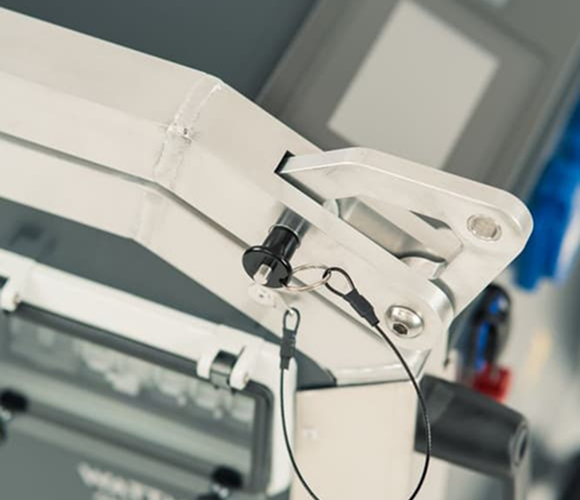

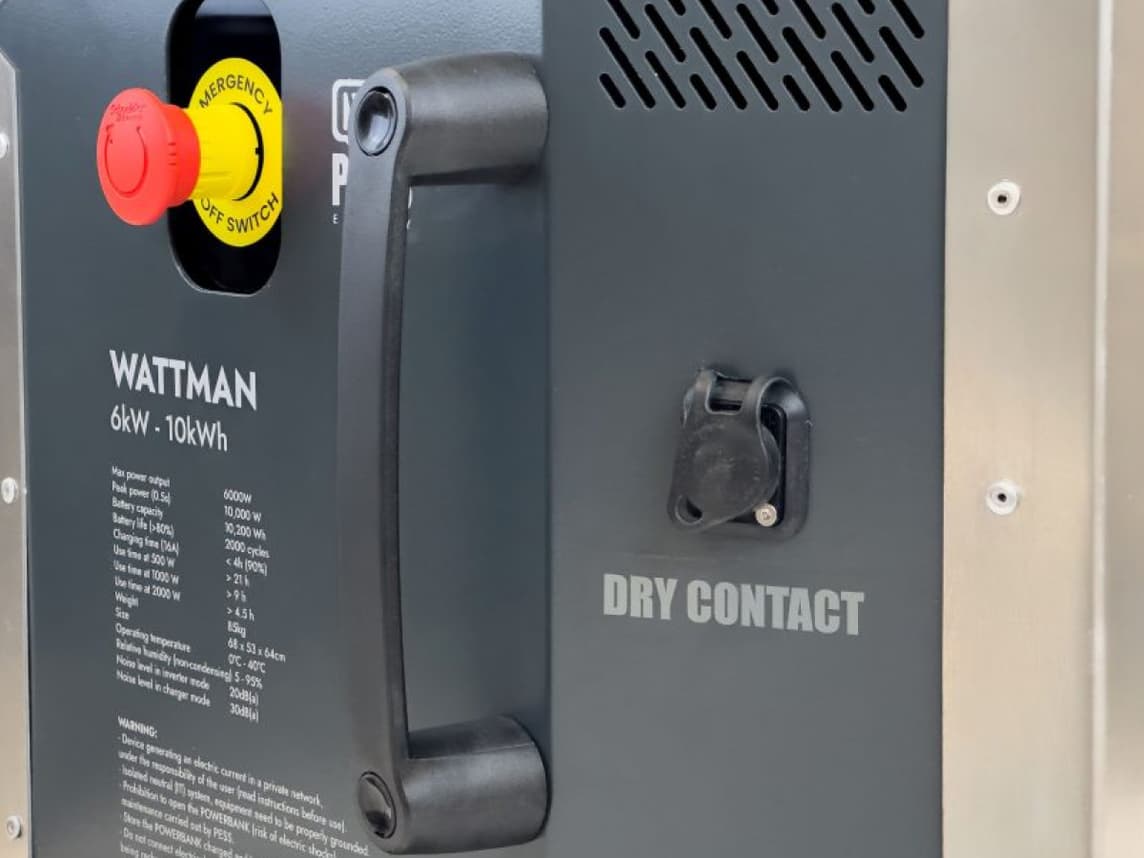

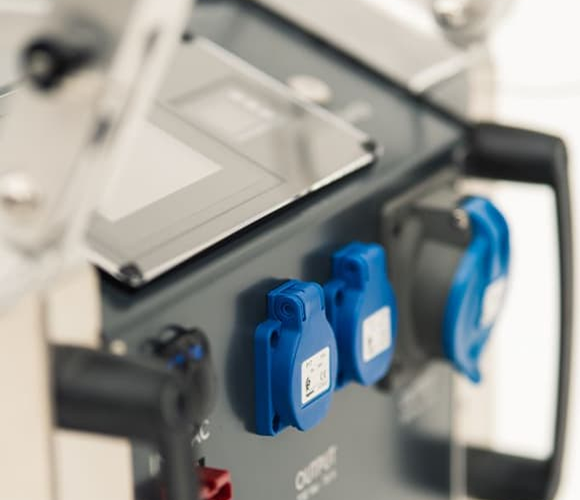

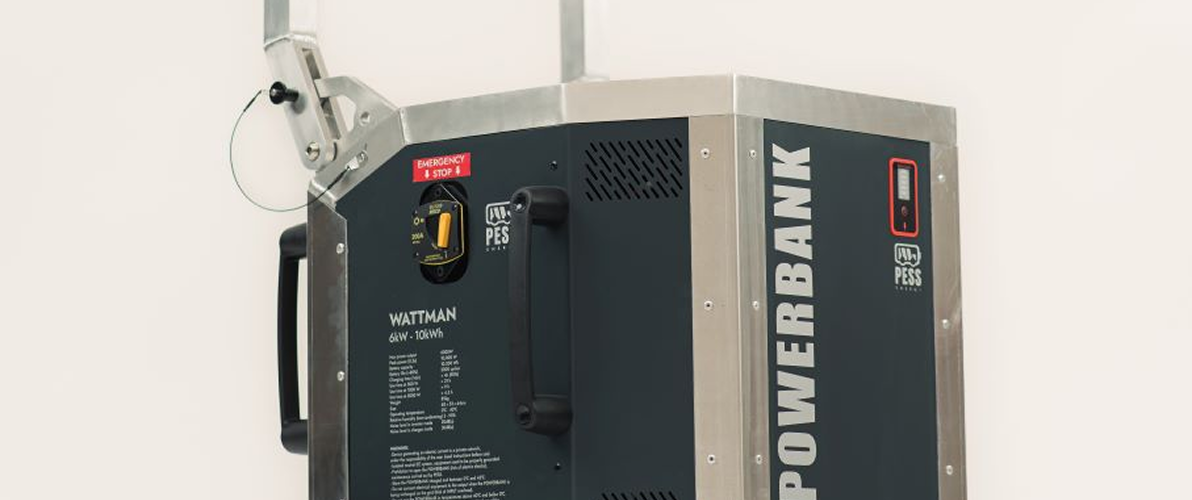

Wattman
ZERO Emission generator
6000W – 10 000WH
Bobine
ZERO Emission generator
4000W – 5000WH
Ekla
MObile solar solution
EV-ADAPTER
charging at electric vehicle station
Infini-T
zero power cut box
Technical data
ELECTRICS |
|
| Peak power | 450 Wp* |
| Open-circuit voltage (Voc) | 52 Vdc* |
| Voltage at maximum power (Vmpp) | 44 Vdc* |
| Maximum system voltage | 1500 Vdc |
| Solar cells | N type i-TOPCon |
| Current at maximum power | 0 à 12 A |
| Efficiency | 22,50% |
| Maximum series fuse | 20 A |
Panels |
|
| Dimensions | 1762 x 1134 x 30 mm |
| Junction box (sealing) | IP 68 |
| Weight | 21 kg |
| Connectors | MC4 Evo2 |
| Cable cross-section | 4mm² |
| Tempered solar glass | |
| Operating temperature | -40°C à +85°C |
| Ballast Tray | |
| Dimensions | 1730 x 980 x 540 mm |
| Materials | Polyethylene, aluminum profiles, and stainless-steel fasteners |
| Weight | 4,15 kg |
| Tilt angle | 15 degrees |
| Certifications | |
| IEC61215/IEC61730/IEC61701/IEC62716 | |
| ISO 9001 : Quality management standard | |
| ISO 14001 : Environmental standard | |
| ISO14064 : Greenhouse gas emissions standard | |
| ISO45001 : Occupational health and safety management standard | |
|
Available Kits |
|
|
Blaze 1800 |
4 Panels (Power 1800 Wp / Voltage 176 Vdc) + 5 ballast trays |
|
Blaze 2700 |
6 Panels (Power 2700 Wp / Voltage 264 Vdc) + 8 ballast trays |
|
Blaze 4000 |
9 Panels (Power 4000 Wp / Voltage 396 Vdc) + 11 ballast trays |
|
Important Information |
|
|
The technical data provided refers to a single solar panel and its ballast trays. |
|
